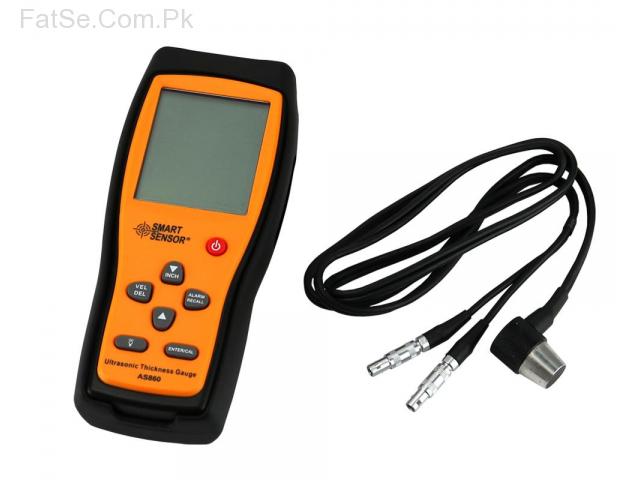

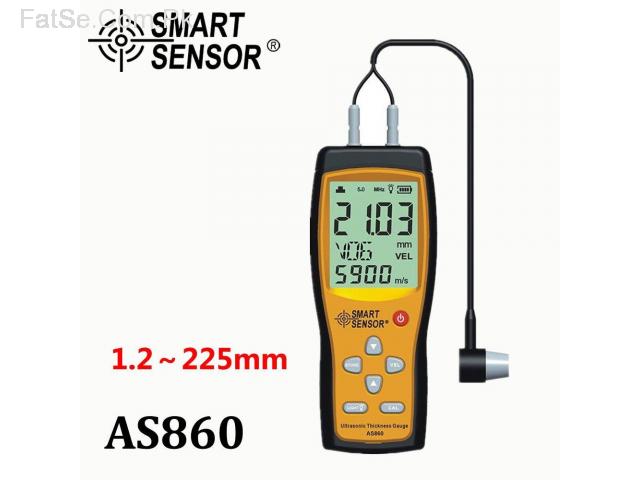

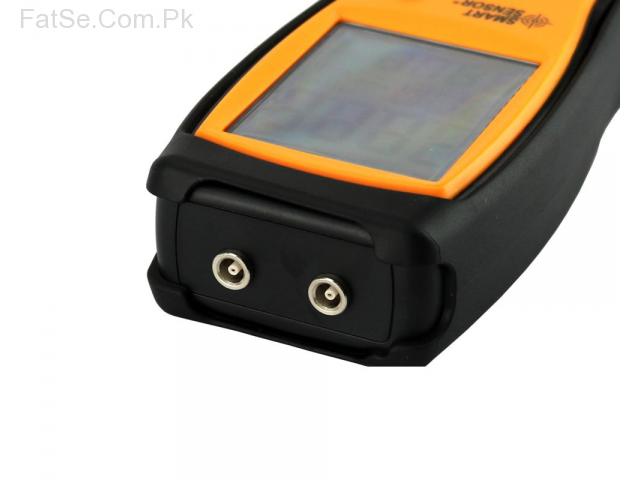

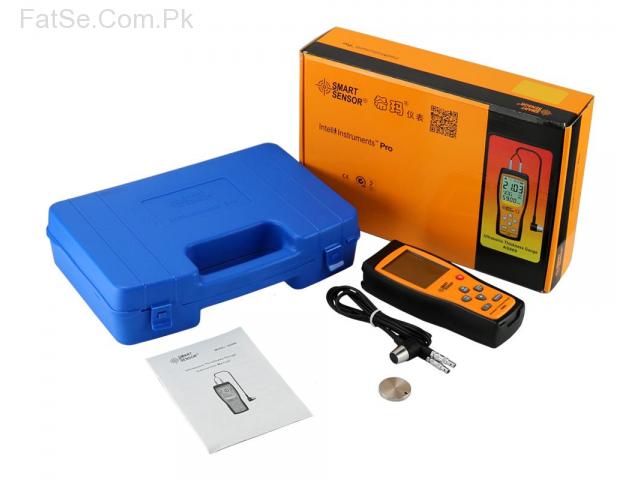

49500.00 RS Ultrasonic Metal Thickness Gauge Karachi

"SMART SENSOR" (USA) Assembled in China Ultrasonic Metal Thickness Gauge which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely
applied in manufacture fields, metal processing, and commercial inspection.

FEATURES
1. Auto calibration to assure the accuracy
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy
3.12 sound velocities for different material
4. Coupling status indication
5. 12 thickness measurement data store and recall
6. Thickness alarm setup
7. Back light function
8. Low battery indication
9. Auto power off

TECHNICAL PARAMETERS
Measuring range: 1.00 to 300 mm (steel)
Accuracy: (1%H+0.1mm)
Resolution: 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm)
Minimum limit for tube measuring steel : 15*2.0mm( 6 transducer) 20*3.0mm( 10 transducer)
Sound velocity:1000 to 9999m/s, Thickness 20mm, accuracy of velocity: 1mm/H 100%, Thickness 20mm , accuracy of velocity: 5%
Power supply: 1.5V AAA Battery
Operation current: 35mA (with back light on)
Frequency: 5MHz
Auto Zero Calibration: V
Auto linear compensation: V
Coupling Indicator: V
