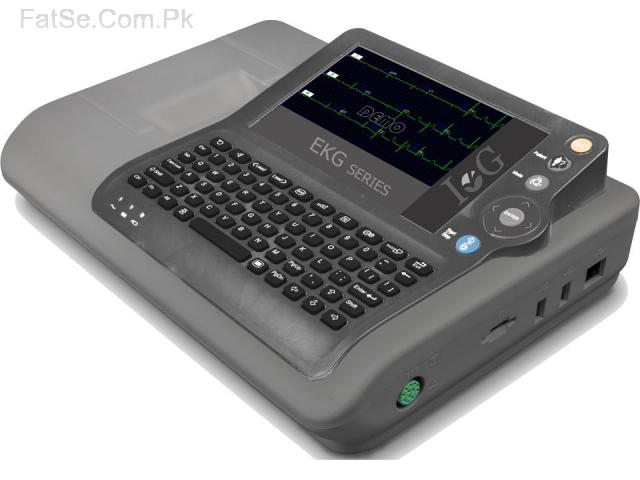

175000.00 RS ECG Germany 3 Channel EKG-1 Karachi

DIGITAL 3 CHANNELS ECG

7" LCD SCREEN whole instrument work status, time, heart rate
Unique ECG data acquisition module with independent lead wires, better in signal quality, faster in acquisition and less cost in maintenance
Alphanumeric keyboard
Onscreen operation guide to check the ECG procedure
Complete digital filters and self-adapting filtering guarantee noise elimination without waveform distortion
Alpha numeric keyboard
Support USB I SD card I internal memory storage
Support Built-in LAN
Paper Width : 80 mm width
Paper speed (5, 6.25, 10, 12.5, 25, 50) mm/s
Recording mode: Auto and manual
Long term recording: Record for a long term (30 sec"-'300 sec) and rhythm analysis
Analysis module for children and paediatrics with 250Hz low-pass frequency, meets the newest standard of AHA/ ACC/HRS 2007
0.01Hz for high-pass frequency of ECG signal contributes to undistorted ST segment measurement and analysis
Analysis Interpretation by Miniesota code, with CSE & AHA database support
The sensitivity and specificity of QRS detection and analysis are up to 99%
Sensitivity four levels as (2.5, 5, 10, 20)mm/mV
Standard sensitivity 10 mm/mV±2%
DC power supply Rechargeable lithium battery,14.8 V/2200mAh
